High-Efficiency Fiber Laser
CW fiber laser source delivers stable output, fast welding speed and clean weld appearance with reduced heat affected area.

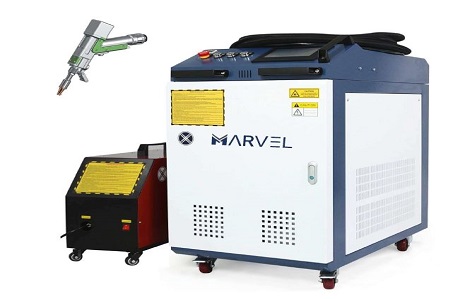

Portable fiber laser welding system
Hand-Held Laser Welding Machines
Marvel Industrial Solution's Hand-Held Laser Welding Machines are compact, efficient and operator-friendly systems for precision metal joining. With 1500W to 3000W fiber laser power, adjustable weld width and continuous or spot welding modes, these machines help manufacturers achieve clean, strong welds with lower heat input and minimal finishing work.
Product overview
Clean, Fast and Flexible Welding for Industrial Metal Fabrication
Hand-held laser welding is ideal for manufacturers who need precise weld quality, easier operation and faster production than many conventional welding processes. The focused fiber laser beam creates narrow, smooth welds with reduced distortion, making it suitable for stainless steel, mild steel, galvanized sheet, aluminum alloy and brass applications.
- 1500W, 2000W and 3000W power options
- Continuous welding and spot welding modes
- Adjustable 0.2 mm to 5 mm weld width
- Compact design with integrated safety controls
Key features
Designed for Better Weld Quality, Speed and Ease of Use
Lightweight Welding Torch
Ergonomic hand-held torch with about 10 m cable length improves reach, flexibility and operator comfort on large jobs.
Adjustable Weld Control
Power range, weld width and welding mode can be adjusted to match material type, joint design and finish requirement.
Minimal Finishing
Produces smooth, narrow welds with low spatter and reduced deformation, helping reduce grinding and rework.
Integrated Safety System
Earth lock, gas detection, gun firing button and laser shutter controls support safer daily operation.
Low Maintenance Operation
Fiber laser technology provides reliable performance, energy efficiency and fewer consumable requirements.
Technical specifications
Models, Welding Capacity and Machine Parameters
Recommended Welding Thickness
Material capacity depends on joint design, laser power, shielding gas and operator parameters.
| Stainless Steel | Up to 4.0 mm / 6.0 mm / 8.0 mm |
|---|---|
| Mild Steel | Up to 4.0 mm / 6.0 mm / 8.0 mm |
| Galvanized Sheet | Up to 3.0 mm / 5.0 mm / 6.0 mm |
| Aluminum Alloy | Up to 3.0 mm / 4.0 mm / 5.0 mm |
| Brass | Up to 3.0 mm / 4.0 mm / 5.0 mm |
| Model Sequence | HW1500 / HW2000 / HW3000 |
Core Parameters
Available as compact industrial welding systems for factory and workshop use.
| Laser Source | CW fiber laser, 1080 +/- 3 nm |
|---|---|
| Output Power | 1500 W / 2000 W / 3000 W |
| Power Adjustment | 10% - 100% |
| Welding Mode | Continuous welding, spot welding |
| Adjustable Weld Width | 0.2 - 5 mm |
| Operating Voltage | Single-phase 220VAC / Three-phase 380VAC |
Applications and materials
Flexible Welding for Fabrication, Repair and Assembly Work
Hand-held laser welding machines are widely used for sheet metal fabrication, stainless steel furniture, kitchen equipment, electrical enclosures, elevator components, signage, automotive parts, metal doors and precision industrial assemblies.
- Stainless Steel
- Mild Steel
- Galvanized Sheet
- Aluminum Alloy
- Brass
Advantages and safety
A Practical Welding Upgrade for Modern Workshops
Business Benefits
- Fast welding speed for improved productivity
- Cleaner welds with less spatter and reduced rework
- Lower heat input helps reduce material distortion
- Simple operation and short learning curve
Safety Features
- Earth lock for controlled laser emission
- Gas detection alarm for low or closed gas flow
- Welding gun firing button with laser shutter protection
- Operator training and process support available
Product inquiry
Send Inquiry for Hand-Held Laser Welding Machine
Share your material, thickness, sheet size, city and production target. Marvel Industrial Solution will contact you with the right machine guidance and quotation details.
Product enquiry
Need a Hand-Held Laser Welding Machine?
Share your material, thickness, joint type and production requirement. Marvel Industrial Solution will help you select the right HW1500, HW2000 or HW3000 configuration.
Hand-Held Laser Welding Machine Buyer's Guide
Hand-held fiber laser welding is a strong choice for businesses that need faster, cleaner and more repeatable metal joining than conventional welding methods. It is especially useful for visible welds, thin sheet metal parts and production work where reduced finishing time matters.
Who should choose this machine?
This machine is ideal for fabrication workshops, stainless steel furniture makers, kitchen equipment manufacturers, cabinet and enclosure producers, repair teams and industrial assembly units.
Which power option is suitable?
HW1500 is suitable for many thin-sheet applications, HW2000 provides stronger capacity for medium thickness work, and HW3000 is recommended when higher penetration and productivity are required.
Frequently asked questions
Can this machine weld aluminum?
Yes. Aluminum alloy welding is supported with the right power level, shielding gas and process settings.
Does it support spot welding?
Yes. The machine supports continuous welding and spot welding modes for different production needs.
Is operator training provided?
Yes. Marvel Industrial Solution provides installation, training and after-sales support for industrial users.
